Medical Solution

Medical Equipment and Automation

Improved patient care

About Us

During the past years, the team members of ATOM-MED have managed to establish excellent relations with a considerable number of foreign companies. This helps us to be able to supply the public and private market in Kosovo with a wide range of medical products. We supply medical equipment and laboratory products to the Ministry of Health, hospitals in Pristina, Pejë, Prizren, Gjakovë, Gjilan, Ferizaj, Vushtrri and Mitrovica, about hundreds of family medicine centers, private hospitals, private clinics, private laboratories, diagnostic centers, of radiology and so on. We have managed to create many contacts and friendships with leading doctors and managers in hospitals and private clinics throughout the territory of Kosovo.



See More

Thermo-Shaker with cooling for microtubes and PCR plates

Thermo–Shaker TS-100C provides intensive mixing and temperature control of samples in microtest tubes or PCR plate. This model of Thermo–Shaker differs from TS-100 with a possibility of cooling samples down to +4°C. Features of TS-100C meet the highest expectations of users according to many parameters:
Fast reaching of specified mixing speed and maintenance of equal amplitude of rotation throughout the Thermo–Shaker block;
Stability of maintaining the preset temperature in a wide range throughout the Thermo–Shaker’s block surface;
LCD display indicates preset and current values of temperature, speed and time of operation;
Quiet motor operation, compact size, prolonged service life.
Functions of heating and mixing can be performed both simultaneously and independently.

There are five heating and cooling blocks available, including a block with a plastic lid for the PCR-plates. All blocks are mutually interchangeable and can be easily installed on Thermo–Shaker.

The instrument is applicable in:

Genetic analysis — in extraction of DNA, RNA and further sample preparation;
Biochemical study of enzymatic reactions and processes;
Extraction of metabolites from cellular material.
Temperature Calibration Function
With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers.
Specifications
Temperature setting range: +4°C ... +100°C
Temperature control range: 15°C below ambient ... +100°C
Temperature setting resolution: 0.1°C
Temperature stability: ±0.1°C
Temperature accuracy at +37°C: ±0.5°C
Average heating speed: from +25°C to +100°C 5°C/min
Average cooling speed: from +100°C to +25°C 5°C/min
Average cooling speed: from +25°C to +4°C 1.8°C/min
Temperature uniformity over the block at +4°C: ±0.6°C
Temperature uniformity over the block at +37°C: ±0.1°C
Temperature uniformity over the block at +100°C: ±0.3°C
Temperature calibration coefficient range: 0.936...1.063 (± 0.063)
Speed control range: 250–1400 rpm
Digital time setting: 1 min–96 hrs / non–stop (increment 1 min)
Timer sound signal: +
Orbit: 2 mm
Display: LCD, characters: 16 x 2
Microprocessor controlled temperature, mixing speed and running time: +
Maximum continuous operation time: 168 hours
Overall dimensions (W×D×H): 220x240x90 mm
Weight: 3.7 kg
Input current/power consumption: 12 V, 4.9 A / 60 W
External power supply:
  • Input AC 100–240 V; 50/60 Hz;
  • Output DC 12 V
  • Mix-Rate x20

    The erythrocyte sedimentation rate (ESR) is an easy, inexpensive, nonspecific test that has been used for many years to help diagnose conditions associated with acute and chronic inflammation, including infection, cancer, and autoimmune disease. ESR is a marker of erythrocyte aggregation influenced by blood proteins such as fibrinogen and immunoglobulins in a state of inflammation. Normally, electrostatic forces between RBCs cause them to repel each other and prevent them from clumping together. An increased amount of plasma fibrinogen or globulins coats the RBCs, promotes their aggregation and accelerates settling, thereby increasing the ESR. High molecular weight fibrinogen has the greatest effect followed by β-globulins and at a distance by α2-globulins, γ-globulins and albumin. The Westergren method is the recommended test procedure and also more discriminating at high and low values. It measures the vertical fall (by gravity) of the top of the blood cell column of thoroughly mixed, anticoagulated venous blood over a 1-hour period. br MIX-RATE® X20 from ELITech Group is an automated-closed system manufactured in the Netherlands, built for users who have a higher workload compared to MICROSED. The system has been carefully evaluated and standardized against the Westergren method to establish normal reference ranges, sensitivity and levels of clinical significance. In addition, the MIX-RATE® X20 features a built-in mixer, printer and scanner for more accurate results and ease of use, respectively.
    Product features.
    • Infrared gravimetry.
    • 20 channels
    • Closed system to be used with MONOSED® ESR glass tube.
    • Random access
    • Up to 80 tests/h
    • 15 - 30 - 60 min. user selectable read time capability.
    • It has connected well with the Westergren method.
    • Automatic temperature correction (Manley).
    • Integrated thermal printer.
    • On-board mixer for more precision and ease of use.
    • Archive of results of 500 patients.
    • Built-in barcode scanner
    • RS232 interface for LIS.

    FAN hp

    For an easy and reliable detection of Helicobacter pylori infections. The FANhp is designed for easy testing of H. pylori from bagged breath samples. For other 13C test protocols and the use of an automatic sample feeder, the well-established HeliFANplus and FANci2 range of FAN devices are recommended. FANhp was developed for physician practices, screening centers and hospitals that want to introduce 13C-urea breath testing for the detection of Helicobacter pylori infections at a reasonable cost. Simply connect the base and sample bag to the 2 ports and tap the start button on the touch screen to start the measurement. The result and diagnosis proposal will appear within 5 minutes. The result can be automatically printed from the built-in printer. For recording a daily log or a system test, the data can be downloaded to a USB and transferred to a computer. No computer required, all operations are performed via a touch screen operated with gloves. Easy to read and bright TFT display. Only four buttons on the desktop (Start, Results, Linearization, Settings), all functions created with icons → easy and direct operation in daily practice, low training requirement. Adjustable positive/negative cut-off for all H. pylori test kits on the market that can be used with bags. Connected wireless barcode scanner to import patient or test IDs. Automatic correction of negative values created by accidental inversion of the base and sample bags. If desired, results are printed immediately as soon as they are available. 300 patient results can be stored in memory, allowing data to be recorded as a daily diary by printing or exporting to a data store. Built-in self-test at the touch of a button. The device is ready for daily operation after running the "Linearization" process in the morning (10 minutes = a cup of coffee). Consumables: bags, absorbents (about 1000 samples), Nafion® tube (per year), air filter (per year) CE certified Service interface for software updates and maintenance (from the distributor). Accurate, reliable and durable: fully following the tradition of "Made in Germany" by FAN. Attractive price due to concentration of features and functions.

    Hipro A3

    Three tests within 360 seconds
    Principle and Implementation
    It is based on the specific reaction of antigen and antibodies. The reaction reaction will occur as a combination of antigen and antibodies, thus enhancing the value of the distribution of light/ absorption/ fluorescence. Assuming that the concentration of antibodies has been resolved, we are able to adopt the technology of the fotal sensor to calculate the concentration of the antigen. Is applicable to the whole blood test of the reactive protein C (CRP), glycosilled hemoglobin (HBA1C), urinary microalbumin (Malb), homocysteine (HCY), D-dimer, anti-stretolysis (ASO), rheumatoid factor (RF) , Homocysteine. four cardiopathy tests and five immune analyzes, etc
    Technical features
    Globally 3D advanced 3D nepelometry technique, real -time test on 4 channels
    Complete blood test, completed in 1-5 min
    Integrated calibration, continuous temperature and quality control system, provide accurate results
    Intelligent bubble that recognizes the technique, stable test results
    Test channel water test function, reliable system performance
    The three main technologies of innovation
    Automated platform:
    Integration of multiple test methodologies
    Automatic laboratory platform
    International reagent
    Full function module:
    Single module capable of all functions, combination of modules 1-48
    Proper laboratories for all sizes, scaling for cost savings
    3 -level calibration system:
    Physical calibration from standard fluid tracked in Ansi
    Calibration of Standard Distance Curve
    System calibration by custom quality control supplied by Bio-Rad
    Functions
    Full Automatic Testing Process: Initial Temperature Discovering, Starting the Rapid Heating Mode, Reading 2D Code, Sample Mixture and R1, R2 Injection and Mixture, Test Temperature Confirmation, Methodology Confirmation, Control Calibration of quality, testing, data screen, Link connection to Lis, Report printing.
    Parameters
    Maximum performance, minimum space space: 1nm (340-860nm); CV < 1%
    Data Interfaces: LAN, Lis/Hi, RS232, Bluetooth, Wi-Fi, USB, SD
    Power: AC 100 ~ 265V
    Volume: l xw x h: 385 x 305 x 353mm
    Weight: 15 kg

    CLASS II MICROBIOLOGICAL SAFETY CABINETS

    Ensuring first class protection for operator, environment and product, MN Series Class II Microbiological Safety Cabinets are the instrument of choice when handling hazardous microorganisms or those whose hazard level is unknown. The window can only be set at a safe position. There is no sliding of the window to wear out or split the seal and a gas spring holds the window firmly closed (or open for easy access cleaning). An optional closing panel with UV light directs the light into the chamber with the source close to the work surface where contamination is most likely to be the highest. White walls for non-glare illumination, rounded corners for ease of cleaning, arm rest for working over long periods without blocking the air intake and low noise level make MN series cabinets a pleasure to work with. The electronics compartment is sited outside of the contaminated zone for servicing and the two HEPA filters can easily be exchanged. DETAILS First class protection for operator, environment and product. Microprocessor control system with digital display for air flow speed. Automatic speed compensation system against clogged filter. Alarms for: Power failure, control system failure, open window, low and high air flow speed, clogged filters. Perfect air tightness of window seal by means of gas spring assisted window. Comfort of usage with very quiet blower and high light intensity. Smooth chamber walls and rounded corners without soldering for easy cleaning and decontamination.

    Nexus IB10 Analyzer

    Point of Care Analyzer
    The Nexus IB10 is a high-quality, fast, easy-to-use point-of-care instrument for clinicians who need to make decisions in a high-stress, complex environment, providing test results in 20 minutes. The IB10 has an innovative design that makes all steps easy for the end user.
    The Nexus IB10 is an immunoanalyzer that quantitatively measures antigens or antibodies in whole blood or plasma samples on a dedicated test disc. The Nexus IB10 system combines chemistry with microfluidics and centrifugal flow to separate cell-free plasma from whole blood. The plasma is then moved through a channel, mixed with the immunoconjugates, and quantified.
    The automated testing process allows for fast and accurate test results with minimal maintenance.
    Results are reported in 20 minutes
    An intuitive user interface with minimal user interaction
    Small footprint for optimal use of space
    Built-in self-test function minimizes maintenance
    No sample preparation is required. Blood separation is done on the Nexus IB10 instrument
    Test discs stable at room temperature for up to 30 days* (*Consult individual IFU product)
    Connect to Laboratory Information Management System (LIMS)
    Built-in thermal printer
    Consumable disk
    The sphingotest ® disc combines chemistry with centrifugal microfluidic flow to rapidly prepare cell-free plasma from whole blood, which can then be flowed through a channel to rehydrate, dissolve and mix with freeze-dried immunoconjugates.
    Using a combination of active flow and capillary action, the test is ready to be quantitatively measured in 20 minutes with an optical signal level proportional to the analyte concentration.
    After adding the patient sample, the entire test is performed within the Nexus IB10 analyzer which controls disc temperature as well as sequence, measurement duration, centrifugal flow, mixing, incubation, timing, final signal measurement, quantification and reporting of results. The drive also includes an internal positive control to ensure that the test equipment has functioned properly.
    Each lot of disks is calibrated for the specific analyte to be measured to ensure lot-to-lot variability is minimized. The lot-specific calibration along with additional information such as lot expiration date is found on the QR code label attached to each disc. It is recommended that external controls also be tested at appropriate time intervals to confirm that the reagent pool is performing within acceptable limits.

    Products

    Mini-Rocker Shaker

    DNARNA UV cleaner box

    Thermo-Shaker with cooling for microtubes and PCR plates

    Plate Shaker-Thermostat

    IONIX – Microchip electrode without filling

    SFRI Hemix 5-60, 5 Diff Hematology Analyzer

    DocUReader 2 PRO

    DocUReader 2 PRO

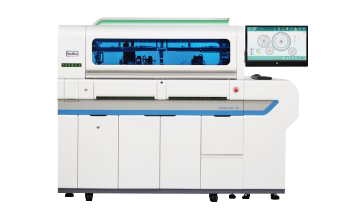

    MAGLUMI 2000 Plus

    Hipro A3

    Selectra MACH5

    Selectra ProM
